The Baghdad Battery Is Not a Battery

The object everyone calls the Baghdad Battery is not a battery, and before that argument can even start there is a smaller, plainer correction to make: it is not Babylonian. The jar is Parthian, or perhaps Sasanian — the two candidate periods together span roughly the last three centuries before the common era through the seventh century after it — and either dating puts the thing more than a millennium clear of Hammurabi, Nebuchadnezzar, or any king whose name belongs on a Babylonian object.¹ The name "Baghdad Battery" survives anyway, because it is catchy and because nobody who repeats it is being asked to date a Parthian glaze. The object deserves to have its own facts right before anyone asks whether it did what it is famous for doing, which, on the evidence, it did not.

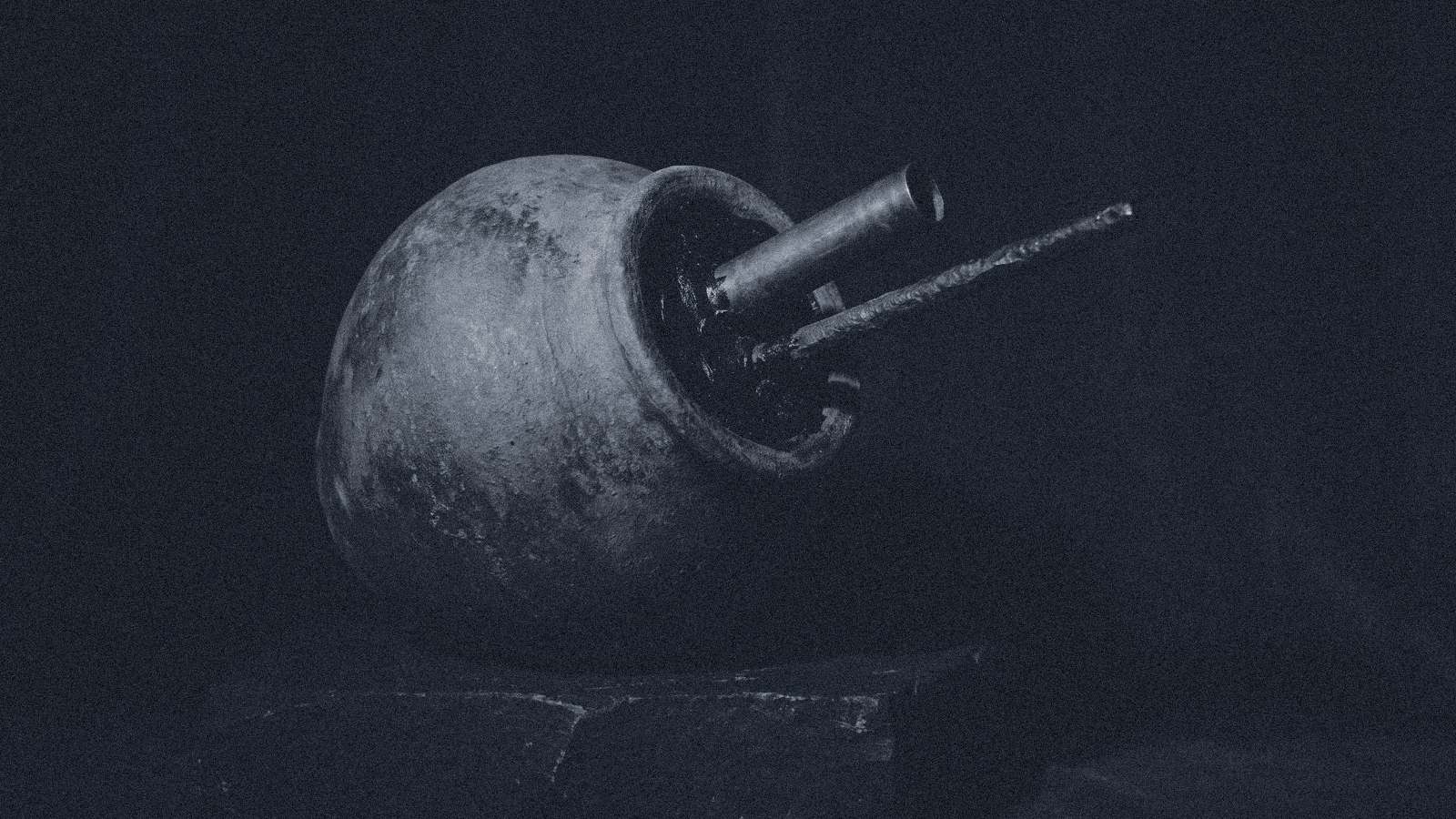

Here is what was actually found, sometime in the 1930s, in or near a village on the outskirts of what is now Baghdad, in a context associated with other Parthian-era material: a small terracotta jar, on the order of thirteen centimetres tall, its mouth stopped with a plug of bitumen. Through the bitumen plug runs an iron rod, and around the rod, inside the jar, sits a rolled copper cylinder, closed at the bottom with a copper cap and sealed at the base with more bitumen so that the iron rod does not touch the copper.² That is the entire assembly: clay jar, copper tube, iron rod, bitumen seal. No wire. No terminal. No second vessel to link it to. Whatever this object is, it was not found wired to anything, and nothing was found wired to it.

The dating deserves a sentence of its own, because it is contested in a way the "not Babylonian" headline glosses over. The jar was recovered without the kind of stratified, well-documented context that would settle the question outright, and later assessments of the pottery style and the associated finds have split between a Parthian attribution, putting it somewhere in the last three centuries before the common era or the first two after, and a Sasanian one, which would place it several centuries later still, closer to the middle of the first millennium CE.¹ That dispute need not be adjudicated here; it does not change the argument that follows, since nothing about the object's construction or findspot depends on which of the two periods it belongs to. What both candidate dates agree on is the one fact that matters for the name: neither is Babylonian, and the gap between the jar and the Babylon of Hammurabi or Nebuchadnezzar is not a rounding error. It is more than a thousand years, on the shorter reckoning, and closer to two thousand on the longer one.

A jar that looks like an experiment because we already know the experiment

A copper cylinder and an iron rod, insulated from each other and immersed in an acidic liquid, is a textbook description of a galvanic cell — a Voltaic pile stripped to one unit. This is not a coincidence of the object's shape; it is a coincidence of ours. Anyone trained after 1800 who looks at copper-plus-iron-plus-electrolyte sees a battery, because we spent two centuries building batteries out of exactly that pairing. The German archaeologist Wilhelm König, who catalogued the piece for the Baghdad antiquities service and published a description of it in 1938, saw the same resemblance and asked the obvious modern question: could this have generated a current?³ König went further and proposed a use for the current, if it existed: electroplating, the deposition of a thin layer of gold or silver onto a base-metal object by passing a current through a plating bath, which would explain gilded artefacts from the same broad region and period that he believed showed unusually thin, even plating.³

That is the whole of the original claim, and it is worth pausing on how modest it actually was. König did not assert that the jars were used to electroplate anything. He asked whether the geometry could support the idea, floated a possible reason someone might have wanted a weak current, and left it there, in a museum bulletin, for other specialists to test. It is the second half of the story — what happened to that question after 1938 — that turned a hedge into a fact.

How a maybe becomes a museum plaque

The idea escaped into English-language popular science in the 1950s, stripped of König's qualifications, and from there it moved into the literature of ancient mysteries almost undisturbed. Writers looking for evidence of lost or precocious ancient technology had, by the 1970s, folded the jar into a genre that also wanted pyramids built by extraterrestrials and Nazca lines as landing strips, and the jar's plain clay shape made it an easier sell than either of those: no elaborate machinery to explain, just a jar, and a plausible-sounding physics claim. Erich von Däniken's ancient-astronaut writing picked it up in that decade as one plank among many, and later television franchises built around the same premise kept it in circulation for a new audience every few years, each retelling a little further from the 1938 bulletin and a little more confident than the last. Television did the rest. Documentary crews built working replicas, filled them with grape juice or vinegar, and showed a needle twitch or a bulb glow faintly, and the demonstration aired as though it answered the historical question rather than a much narrower one: whether an object shaped like this jar can, today, in a lab, produce a measurable current under the right filling. It can. Several replica builds since the 1940s have confirmed that a copper-and-iron cell of this geometry, filled with an acidic electrolyte, generates a weak current, enough in some builds to achieve a thin, patchy plating over hours, enough in others to light a small indicator bulb.⁴ None of that is in dispute, and none of it is evidence about the second millennium of use this object actually had before anyone photographed it for television.

That a jar like this can generate a current is not evidence that anyone used it to generate one; a demonstration of capability is not a record of use.

The most-cited of these demonstrations, run by the German Egyptologist Arne Eggebrecht at the Roemer- und Pelizaeus-Museum in Hildesheim in 1978 for a documentary broadcast, is also the least reliable, and it is worth flagging plainly rather than folding into the general pile of replica evidence. Eggebrecht reported gold-plating a small silver statuette using a battery of replica jars filled with grape juice, a striking result that circulated widely in the years afterward. The underlying data and method were, as far as the published record shows, never published in a form other specialists could examine and reproduce, and independent replications by other researchers have not matched his reported result under comparable conditions.⁵ A result that was announced on television and never subjected to the ordinary discipline of a published, checkable method is not a result a careful reader should treat as established, however often it gets repeated as if it were.

What was never in the ground with it

Set the replicas aside and look at what the excavation itself actually produced, because this is where the battery reading runs out of support. No wire, cable, or metal connector was recovered with any of the jars, and no arrangement of multiple jars in series or parallel — the minimum you would need to get a current strong enough to be useful for anything, since a single cell of this kind produces only a fraction of a volt — has ever been documented at an excavation.² No ancient Mesopotamian, Persian, or Parthian text describes a current, a shock, a spark drawn from a jar, or anything resembling electrical phenomena harnessed on purpose; the extensive Akkadian, Aramaic, and Middle Persian technical and administrative literature that survives from the wider region is, on this point, silent.⁶ And the specific application König floated — electroplating as the explanation for ancient gilded objects — has not held up under the metallurgical examination it was proposed to explain.

Paul Craddock, who spent decades in the British Museum's Department of Scientific Research examining the technology behind ancient gilded and plated objects across the Near East and Mediterranean, and colleagues working with him have argued that the gilding on ancient artefacts, including pieces from the same broad period and region as the jars, is consistent with fire-gilding and mercury-amalgam gilding, established techniques with clear technical signatures, rather than with electrodeposition.⁷ Fire-gilding works by dissolving gold in mercury to make an amalgam, painting or rubbing that amalgam onto the object's surface, and then heating the piece until the mercury burns or evaporates off, leaving a bonded gold layer behind. It is laborious, it is toxic to the people doing it, and it is thoroughly attested archaeologically and textually across the ancient world in a way that battery-driven electroplating is not. A related method, cold mercury-amalgam gilding without the full burn-off step, and simple leaf gilding with an adhesive ground, round out a toolkit that Near Eastern and Mediterranean metalworkers had already used for well over a thousand years before the Parthian period began, refined through generations of apprenticeship rather than through anything resembling an electrical experiment.⁷ The craftsmen of the Parthian and Sasanian Near East did not need a jar wired to nothing in particular; they had a working method, and the surviving objects look like its product.

What the jar at Seleucia actually held

The stronger case for what these jars were built to do comes not from replicating a current but from a close cousin found somewhere else entirely. Excavations at Seleucia-on-the-Tigris, the great Hellenistic-and-Parthian-era city on the west bank across from what became Ctesiphon, turned up vessels of comparable construction — a cylindrical copper or bronze tube inside a clay or ceramic housing — and in at least some of these the excavators recovered traces of organic material consistent with rolled papyrus or parchment inside the tube.⁸ That changes the whole shape of the question. A copper tube, rigid and moisture-resistant, is a sensible thing to roll a document around and store it inside; a bitumen seal at the mouth is a sensible way to keep damp and insects out of a scroll case; and an iron rod down the centre, if that is in fact what some of these examples held rather than another rolled document, could as easily have served as a stiffening core or a spindle for winding a scroll as an electrode. None of that requires an electrolyte, a current, or a use for either.

This is not a certainty dressed up as one — the Baghdad jars and the Seleucia vessels are not identical, and a resemblance should not be overstated into an identity. But a scroll or document case is a mundane, well-attested category of object in the ancient Near East, storage for something that needed protecting from the same damp and dirt that clay-and-bitumen construction is good at excluding, and it requires inventing nothing: no undocumented electrical theory, no lost textual tradition of ancient electricity, no gap in the archaeological record where the wires should be. The corrosion sometimes cited on the copper cylinders of the Baghdad jars, offered by battery proponents as a trace of an acidic electrolyte once inside them, is also perfectly consistent with damp organic contents sitting against the metal for centuries, or with ordinary burial chemistry in a wet clay context; corrosion consistent with an acid is not corrosion that proves one particular acid, applied for one particular purpose, was ever there.² Between two explanations, one that requires a use for electricity nobody wrote down and one that requires a container for documents that the region is full of, the second does not need a special pleading the first cannot avoid.

The real story the battery crowds out, and a harder-to-verify irony

This site returns, essay after essay, to the same method: check what was actually found against the story that got told about it, and be honest about which parts of the received version survive that check.² The Baghdad Battery is close to a pure case of the method working in the other direction — not a textbook claim that turns out to understate an ancient achievement, as with the predictive astronomy the Babylonians actually built centuries before Hipparchus,⁹ but a popular claim that invents an achievement nobody needed, because the real one sitting next to it is less cinematic. Parthian and Sasanian metalworkers cast bronze, worked silver and gold with fire-gilding and granulation, glazed ceramics with controlled colour chemistry, and moved goods and documents across a trade network that ran from the Mediterranean to Central Asia and beyond — craft and chemistry of a genuinely high order, achieved with furnaces, mercury, and technique refined over centuries, not with a jar quietly generating a fraction of a volt in a storeroom with nothing plugged into it.⁷ That is a story that needs no invented physics to be worth telling, and it is the story the battery reading has spent eighty years crowding off the page.

None of this makes Wilhelm König a crank, and that deserves saying plainly, because it would be easy and unfair to treat this essay as a takedown of the man who asked the question. He looked at a real object, noticed a real resemblance to a piece of nineteenth-century technology, and proposed a testable idea in a scholarly bulletin, which is exactly what an archaeologist is supposed to do with an object that puzzles him. The failure is not in the asking. It is in everything that happened after the asking: a hedge that read "could this have worked as a cell" became, by the time it reached a television script, "this is an ancient battery," and the intervening qualifications — no wires found, no text describing a use, no second vessel to complete a circuit, a far more mundane comparandum sitting at Seleucia — simply did not survive the trip from bulletin to broadcast. The same flattening happens to a builder-king remembered only for what he destroyed, and it happens for the same reason: a plain, well-evidenced story is harder to repeat than a striking, under-evidenced one, and repetition, not evidence, is what actually accumulates on a subject like this over eighty years.

A hedge that read "could this have worked as a cell" became, by the time it reached a television script, "this is an ancient battery," and the qualifications did not survive the trip.

There is one more turn to this story, and it needs care, because it sits at the edge of what can actually be confirmed rather than in the middle of it. The Baghdad Battery jars belonged, as excavated Iraqi antiquities, to the collections of the Iraq Museum (then the National Museum of Iraq) in Baghdad. Another essay on this site covers what happened to that museum's collection over roughly a day and a half in April 2003, when it was looted after its staff evacuated and the building went unsecured: thousands of objects taken, a minority recovered in the years since through seizures, an amnesty, and site finds, and a substantial number still unaccounted for.¹⁰ Popular accounts of the battery jars, retold in the years after 2003, have sometimes stated flatly that the objects were among the material lost in that looting or went missing from display afterward. That claim has not been independently verified against a primary museum inventory or a specialist's confirmed accounting, and it is repeated here only as what it is: a claim in circulation, plausible given the general pattern of small, portable metal-and-ceramic objects being exactly the class of item that went missing most easily in 2003, but not one a trusted source currently supports.¹¹

What can be said without hedging is the shape of the irony, whichever way the specific fact resolves. An artefact that spent eighty years being asked to prove something it never claimed to be — a battery, a power source, evidence of ancient electricity — belonged to a collection that, in the same period this essay covers, suffered a documented and serious loss of exactly the kind of small, easily moved object this jar is. Whether this particular jar is among the pieces still unaccounted for or safely catalogued in Baghdad today, the museum that held it sits at the centre of the other story this site keeps returning to: not what an ancient object can be made to prove under a television camera, but what happens to the plainer, harder job of keeping the record of a civilisation intact when the building holding it is left unguarded for a day and a half. A jar that was never a battery is, on the evidence, still a document case, or something close to one — a container built to protect a written record from the damp. It would be a strange kind of justice, and not a happy one, if the object most famous for a use it never had turned out to share the fate of the very kind of record it may once have been built to keep safe.
